ECM IDU Motor

  • Motor Type: ECM Indoor Unit Motor
  • Operating Mode: Constant Torque/Constant Airflow
  • Motor Input Voltage(V DC): 115/230 V, 50/60 Hz
  • Output power (W): 250 W ~ 750 W
  • Speed(rpm): 300 ~ 1800 rpm
  • No. of Poles: 10
  • Insulation Class: B
  • Direction of Rotation: CW/CCW
  • Winding Type: Aluminium/Copper
  • Working Temperature: -40~ +40 ºC
  • Application: Air-Handlers/Furnace

ECM ODU Motor

  • Motor Type: ECM Outdoor Unit Motor
  • Operating Mode: Constant Speed/Variable Speed
  • Motor Input Voltage(V DC): 115/230 V, 50/60 Hz
  • Output power (W): 100 W ~ 750 W
  • Speed(rpm): 300 ~ 1800 rpm
  • No. of Poles: 10
  • Insulation Class: B
  • Direction of Rotation: CW/CCW
  • Winding Type: Aluminium/Copper
  • Working Temperature: -40~ +60 ºC
  • Application: Residential/Commercial Outdoor Units

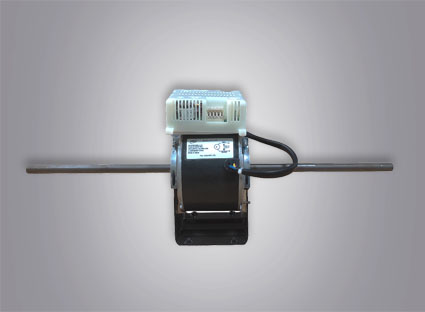

ECM FCU Motor

  • Motor Type: ECM FCU Motor
  • Operating Mode: Constant Speed/Variable Speed
  • Motor Input Voltage(V DC): 115/230 V, 50/60 Hz
  • Output power (W): 60 W ~ 750 W
  • Speed(rpm): 300 ~ 1800 rpm
  • No. of Poles: 10
  • Insulation Class: B
  • Direction of Rotation: CW/CCW
  • Winding Type: Aluminium/Copper
  • Working Temperature.: -20~ +50 ºC
  • Application: Fan Coil units
