PSC

Split ODU Motor

  • Type: Split ODU
  • Watt: 20-650
  • RPM: 500-1800
  • Pole: 4,6,8 Pole
  • Rated Voltage: 90-115V,220-240V,400V,460V,575V
  • Frame size: 95mm, F42, F48
  • Thermally Protected Motor
  • RoHS Compliance
  • Winding: CU/Al/Hybrid
  • Rotation: CW/CCW
  • Speed: Single & Multiple Speed
  • Insulation: B & F Insulation Class
  • Ambient Temp.: 10 - +55°C

Window Motor

  • Type: Window
  • Watt: 19-190
  • RPM: 500-2900
  • Pole: 2, 4, 6, 8
  • Rated Voltage: 90-115V,220-240V,400V,460V,575V
  • Thermally Protected Motor
  • RoHS Compliance
  • Winding: CU/Al/Hybrid
  • Rotation: CW/CCW
  • Speed: Single & Multi Speed
  • Insulation Class: B & F
  • Ambient Temp: 10 - +55°C

Cassette Motor

  • Type: Cassette
  • Watt: 19-190
  • RPM: 500-2900
  • Pole: 2, 4, 6, 8
  • Rated Voltage: 90-115V,220-240V,400V,460V,575V
  • Thermally Protected Motor
  • RoHS Compliance
  • Winding: CU/Al/Hybrid
  • Rotation: CW/CCW
  • Speed: Single & Multi Speed
  • Insulation Class: B & F
  • Ambient Temp: 10 - +55°C

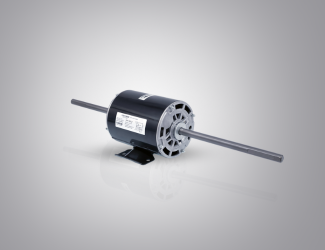

VRV Motor

  • Type: VRV
  • Watt: 92-1200
  • RPM: 600-2900
  • Pole: 2, 4, 6, 8
  • Rated Voltage: 90-115V 220-240V,415 & 575 v 50Hz/60Hz
  • Thermally Protected Motor
  • RoHS Compliance
  • Winding: Al/CU/Hybrid
  • Rotation: CW/CCW
  • Speed: Single & Multi Speed
  • Insulation Class: B & F
  • Ambient Temp: 10 - +55°C
